PS Audio Aspen FR5 Loudspeakers
Description

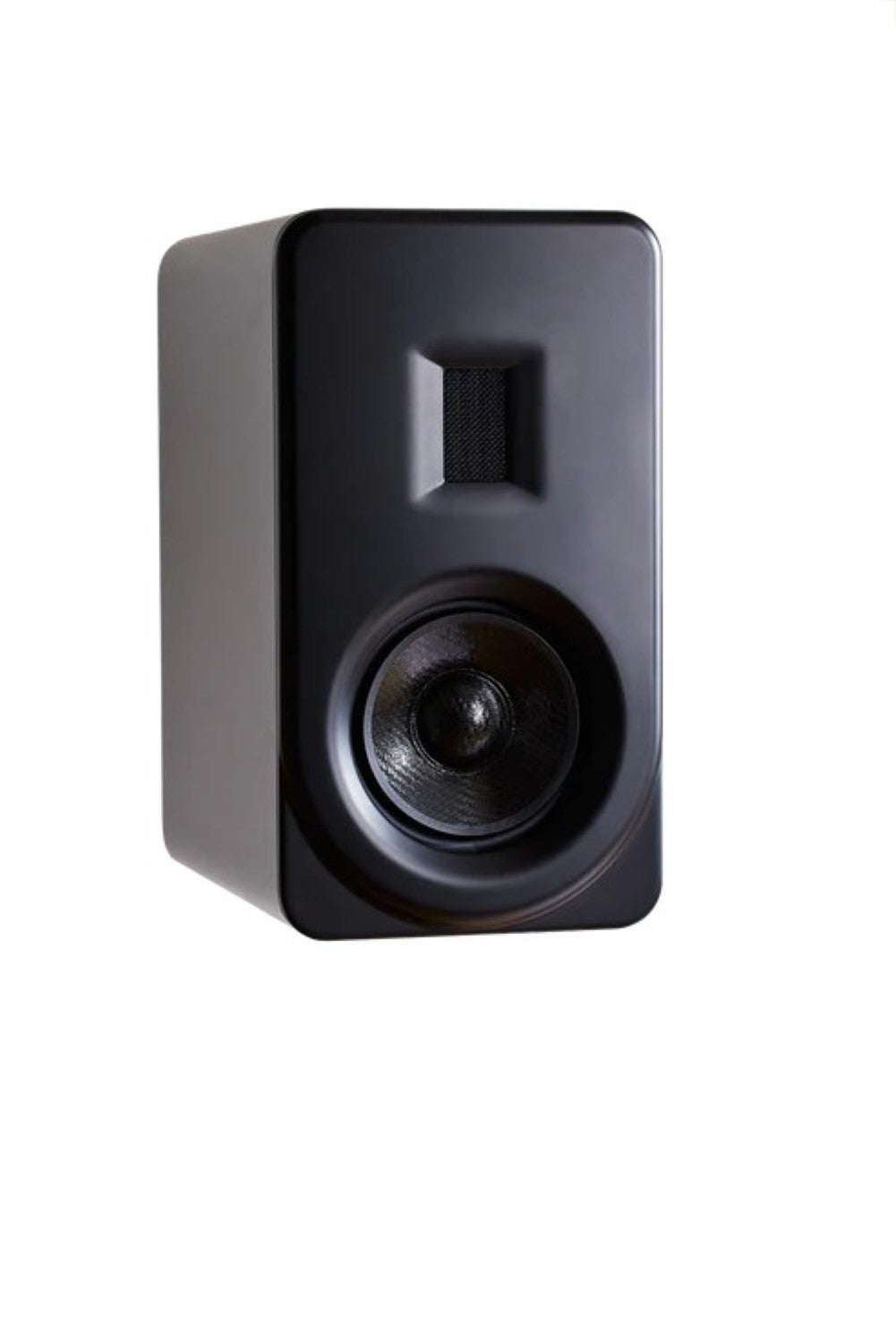

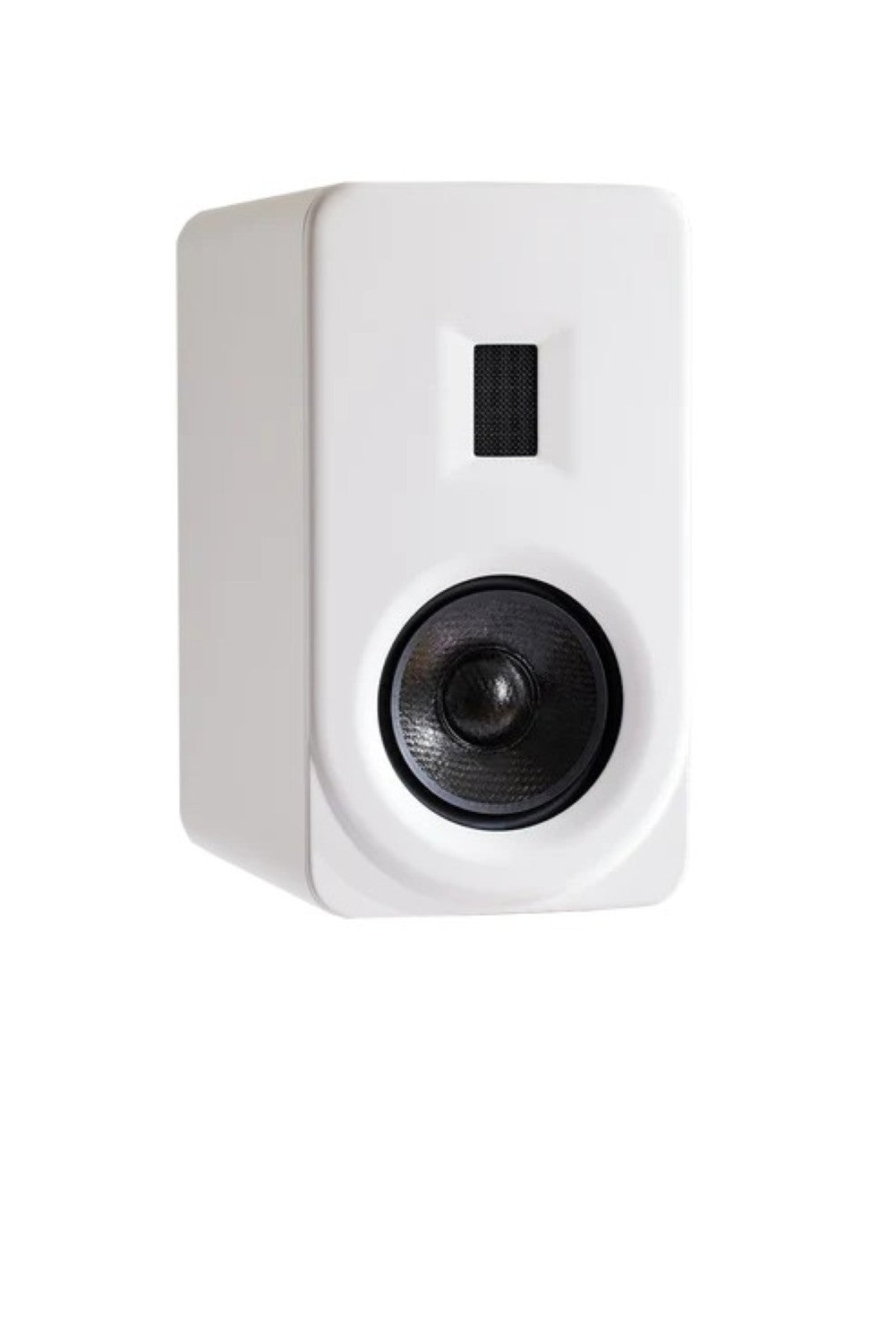

Aspen FR5 Loudspeaker

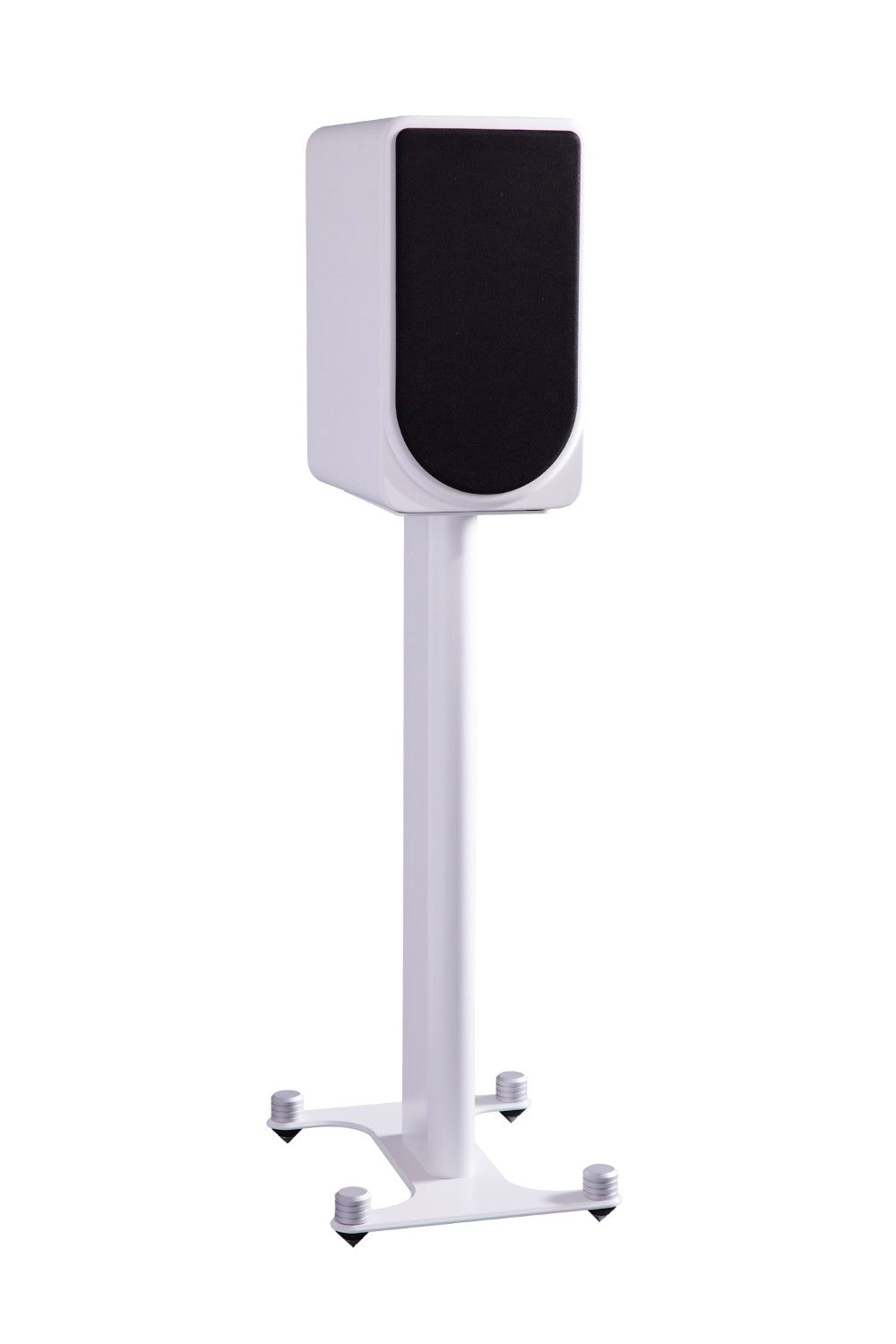

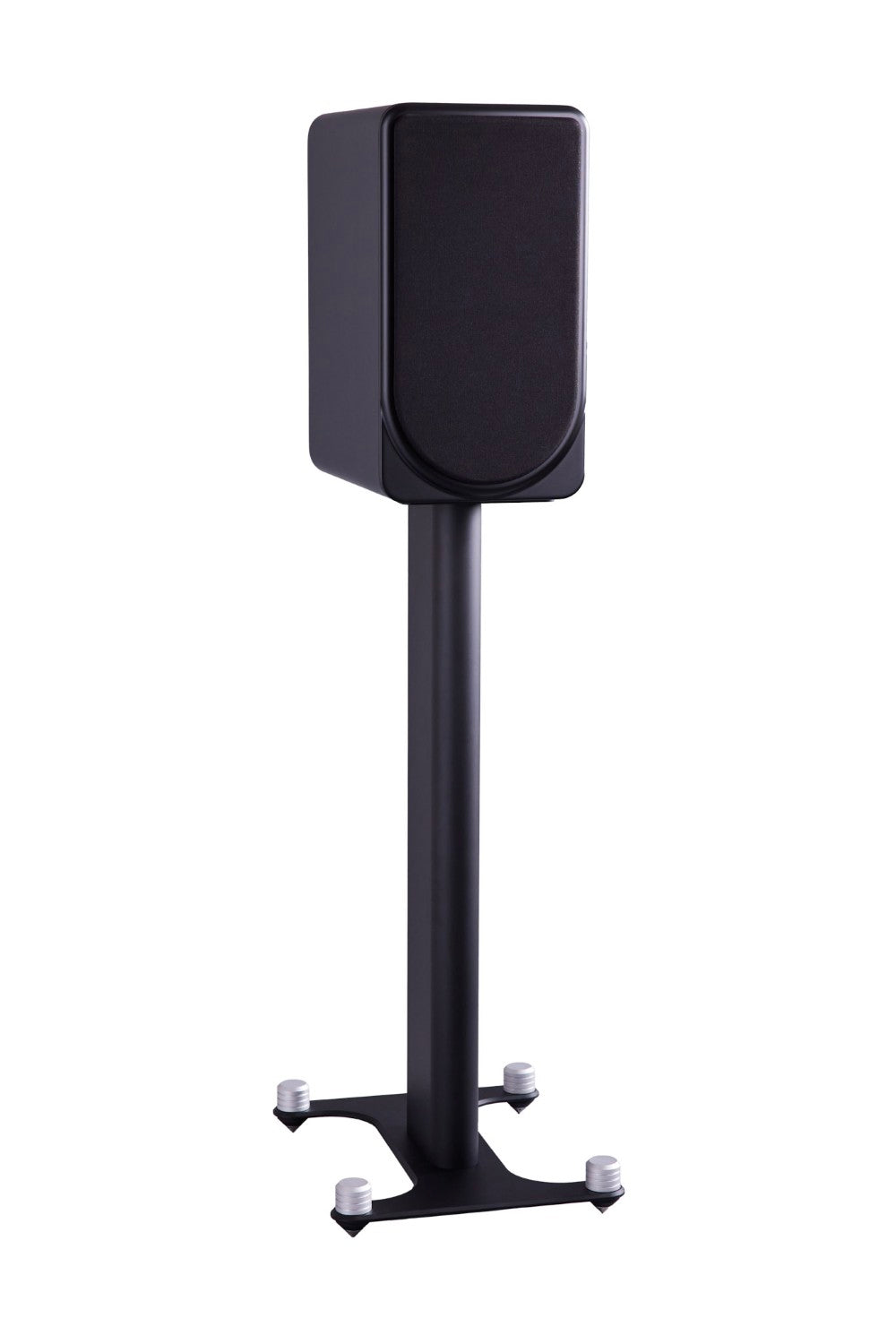

PS Audio Aspen FR5 Loudspeaker Stands Sold Separately
"The best speaker I've ever heard in this price range*"
The Aspen loudspeaker series represents the culmination of 50 years of industry experience; learning in intimate detail what works and what does not; what it takes for a loudspeaker to disappear and leave only the magic of the music; designing a no-compromise phase-correct crossover; constructing a cabinet that does not color the sound; crafting a speaker that is easily driven with any decent power amplifier, and when not even the most advanced driver manufacturer’s products are good enough to meet our exacting standards, designing woofers, radiators, and tweeters from scratch. In all respects, the FR5 will transcend your expectations of what an affordable stand mount loudspeaker can do.
No longer do you have to compromise.
Breathtaking to listen to, beautiful to behold, fits in any small to medium sized room, with bass that will astound you, the Aspen FR5 is a dream come true.
Design
Application
Technology
By far the most important piece in the HiFi chain is the loudspeaker. If the speaker cannot reproduce what it is fed from the electronic chain, the missing musical information is forever lost. To achieve all that music demands, over the years, loudspeaker designers have tried to leverage every trick in the book: electrostats for details, conventional drivers for dynamics, planars for transparency, ribbons, domes, horns, open baffles, bipoles, dipoles. The list is endless and the choices and their inevitable sonic compromises daunting. With close to 50 years under our collective belts, we at PS Audio are committed to designing the perfect loudspeakers for every application, room size, and budgets. In the Aspen series we start with the FR30, then move to the FR20, the FR10, and finally the FR5. Each is a full range state-of-the-art loudspeaker that covers the range of possibilities from small to large rooms and to meet every budget need. The FR5 will fit into every small to medium sized room and provide potent bass output and extension for a stand mounted speaker. For the upper end, the FR5 employs the same Aspen planar tweeter as found in both the FR20 and FR30. Without question, the Aspen FR5 is the perfect loudspeaker for any small to medium-sized room and, certainly, any budget. Why compromise? Go for the best.
Specifications - Aspen FR5 Loudspeaker
Color Options | Satin White, Satin Black |

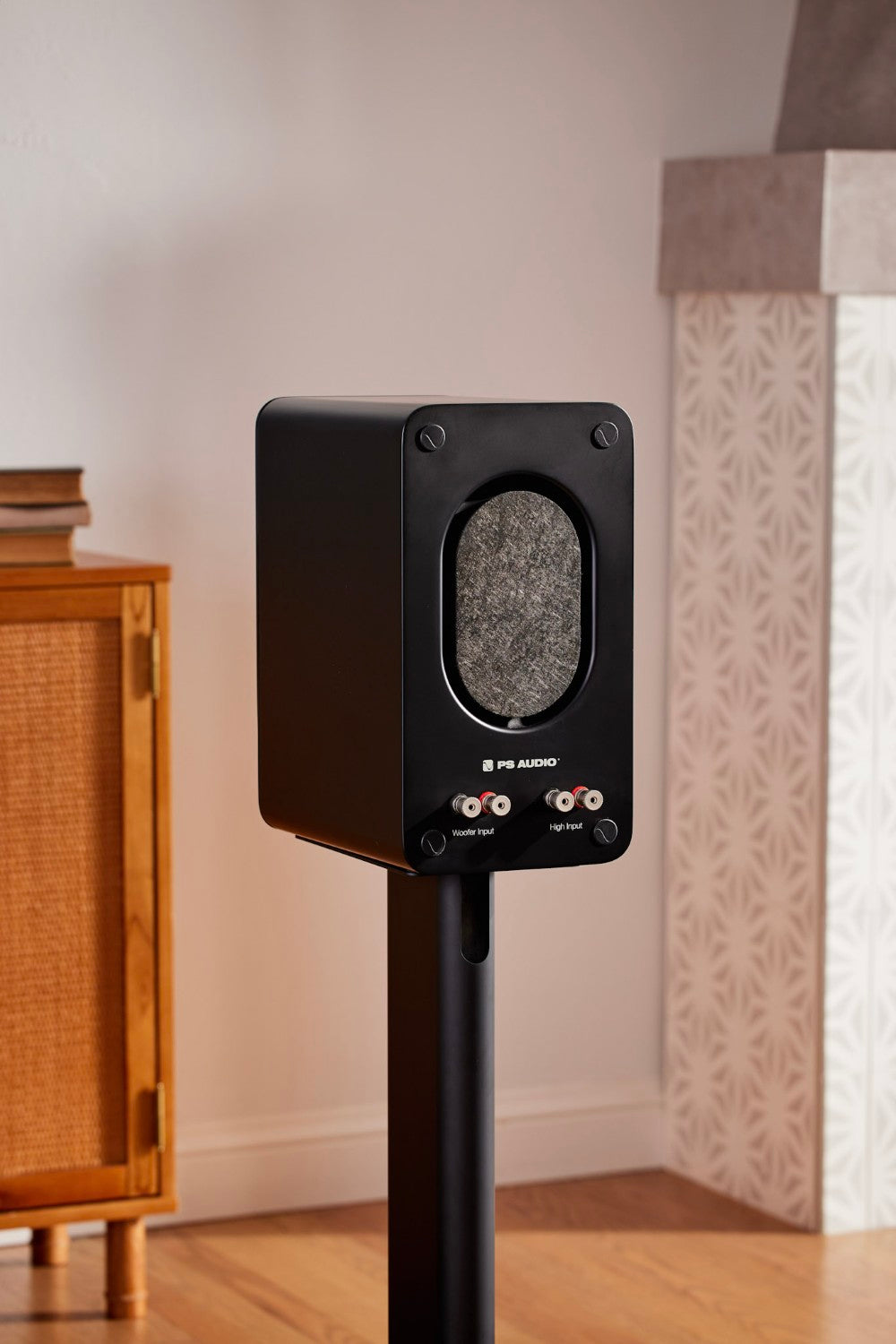

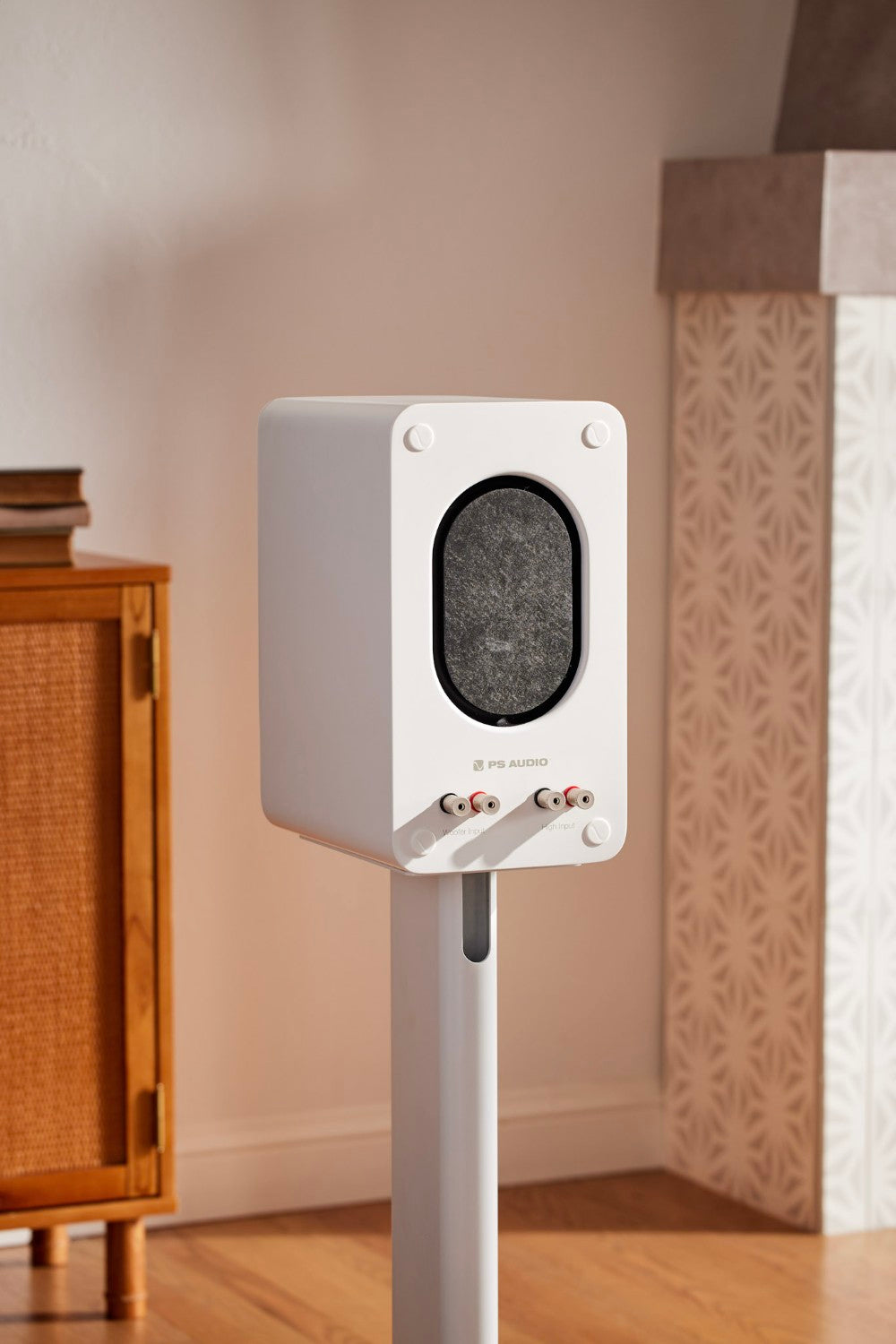

Enclosure Type | Passive radiator (one 6x9” oval rear-firing) |
High Frequency Transducer | 2.5” planar magnetic with Teonex diaphragm |
Low Frequency Transducer | 1 x 6.5” woofers, cast frame, Curv woven polypropylene, advanced magnet structure |
Crossover Frequency | 1750 Hz - Linkwitz-Riley 6th order acoustic |
Sensitivity (2.83V @ 1M) | 83.5 dB |
Nominal Impedance | 6 ohm (5.6 ohm minimum impedance) |
Recommended Amplifier Power | 50-150W |
Frequency Response | 35 Hz-20 khz (-6dB) half space, 30 Hz (-6 dB) in-room |
Dimensions (HxWxD) |
14.5" x 8" x 13" speaker only 28.25" x 11.75" x 14” stand only |
Net Weight |
Speaker: 26.6 Ibs (12.1 kg) each |
