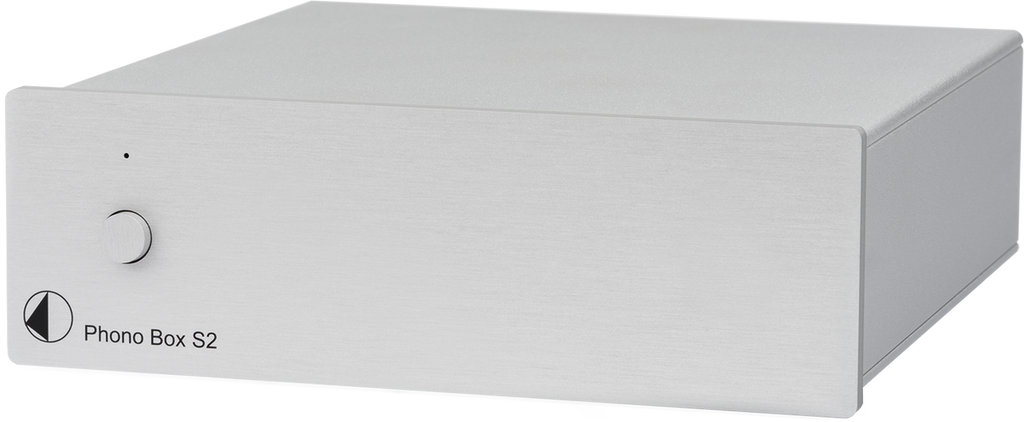

Pro-Ject Phono Box Phono Preamplifier
$215.00
$239.00
By Project
Description
Moving Magnet/Moving Coil Phono preamp with line output
Most of today's amplifiers are built without a specific phono cartridge input. The Phono Box is an ideal phono preamplifier for these hi-fi systems, accepting both MM and MC cartridges. The analogue output of the Phono Box can easily be connected to the line-input of your amplifier.
Features:
- Preamplifier for MM or MC with switch on rear panel
- Best buy classic
- "Green" DC power supply (< 1 watt standby power)
- Precise RIAA equalisation
- Low noise ICs
- Output stage with ultra-low impedance
- Gold-plated RCA sockets
- Small size for installation near record player
Specifications:
| Input Impedance, MM | 47 kohms / 120 pF |
| Input Impedance, MC | 100 ohms / 120 pF |
| Gain, MM | 40 dB |
| Output Voltage (Typically), MM | 300 mV / 1 kHz at 3 mV / 1 kHz |
| Gain, MC | 60 dB |
| Output Voltage (Typically), MC | 300 mV / 1 kHz at 0.3mV / 1 kHz |
| Max. Output | 9.5 V (1 kHz) |
| Noise Floor, MM | 94 dBA |
| Noise Floor, MC | 75 dBA |
| THD, MM | 0.01% |
| THD, MC | 0.05% |
| RIAA-Equalisation Curve Accuracy | 20 Hz - 20 kHz / Max. 0.5 dB |
| Outboard Power Supply | 18 V / 200 mA DC, Suitable for Your Country's Mains Supply |
| Standby Power Consumption | < 1 Watt |
| Power Consumption | 20 mA DC |
| Dimension W x H x D | 103 x 36 x 104 (115 mm with Sockets) |
| Weight | 570 g |
